OUR RIGS

McKAY RIGS

The company’s fleet consists of Schramm 685 truck mounted drill rigs, Schramm 685 track mounted drill rigs, LF350 truck mounted diamond drill rigs and a UDR 1200 truck mounted diamond drill rig. All rigs are near new or have been recently stripped and rebuilt.

For more information on rig specifications please email tenders@mckaydrilling.com.au

THE DRILLING FLEET VARY SLIGHTLY FROM RIG TO RIG.

RIG 1

Carrier: 8×8 Tatra
Model: T685i Schramm
Year: 2023
Last Rebuild: N/A
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

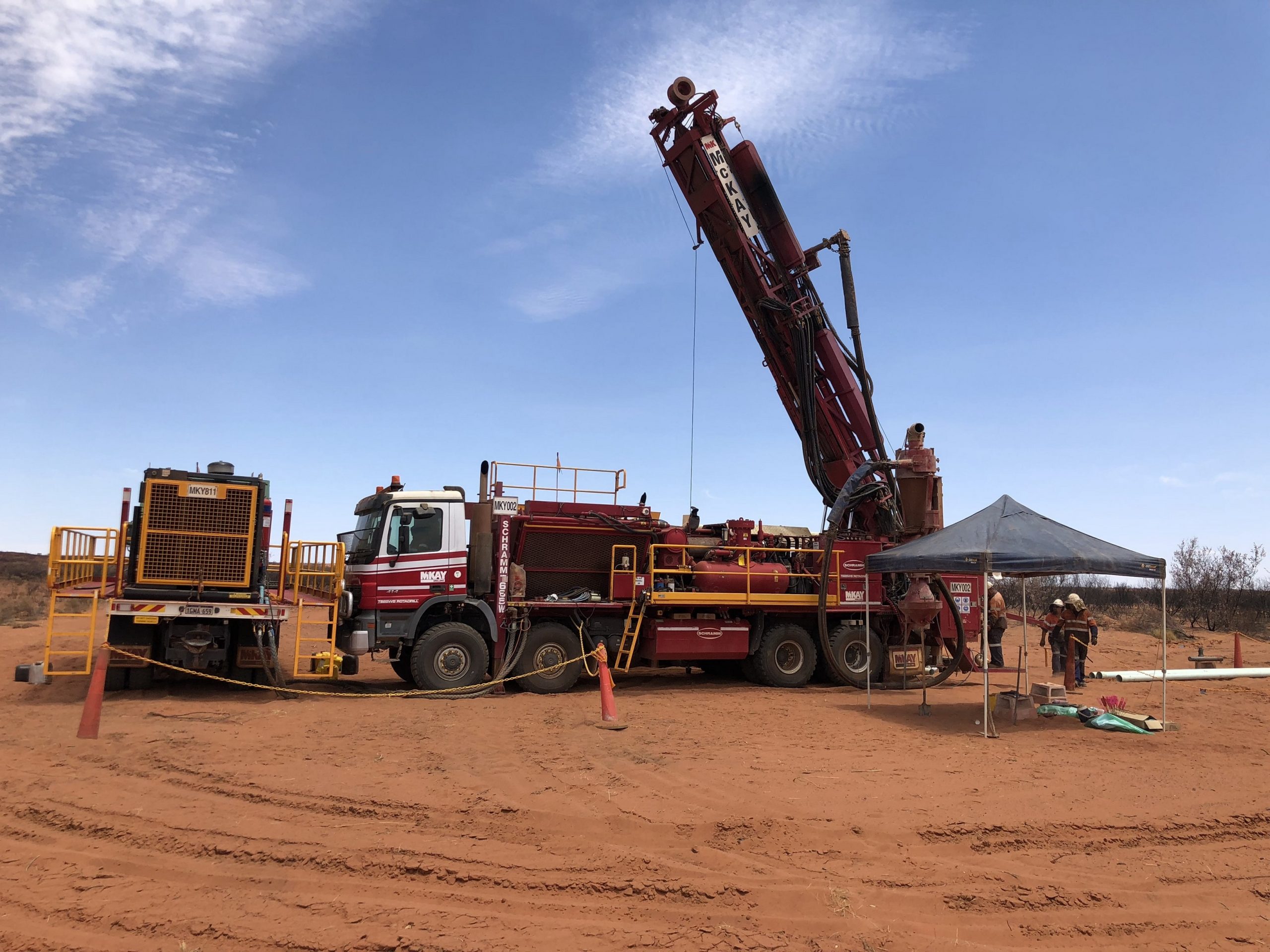

RIG 2

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2006
Last Rebuild: 2019
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Foremost 1500
Depth Capacity: +700m 5.5″ RC

RIG 3

Carrier: Track
Model: V-Track
Year: 2022
Last Rebuild: March 2022
Power: MTU 12v -2000
Capacity: 1150/ 1350 CFM @1800RPM
Pullup Capacity: 33,883kg
Pulldown Capacity: 18,280kg
Rod Handler: Foremost 1500
Depth Capacity: 685

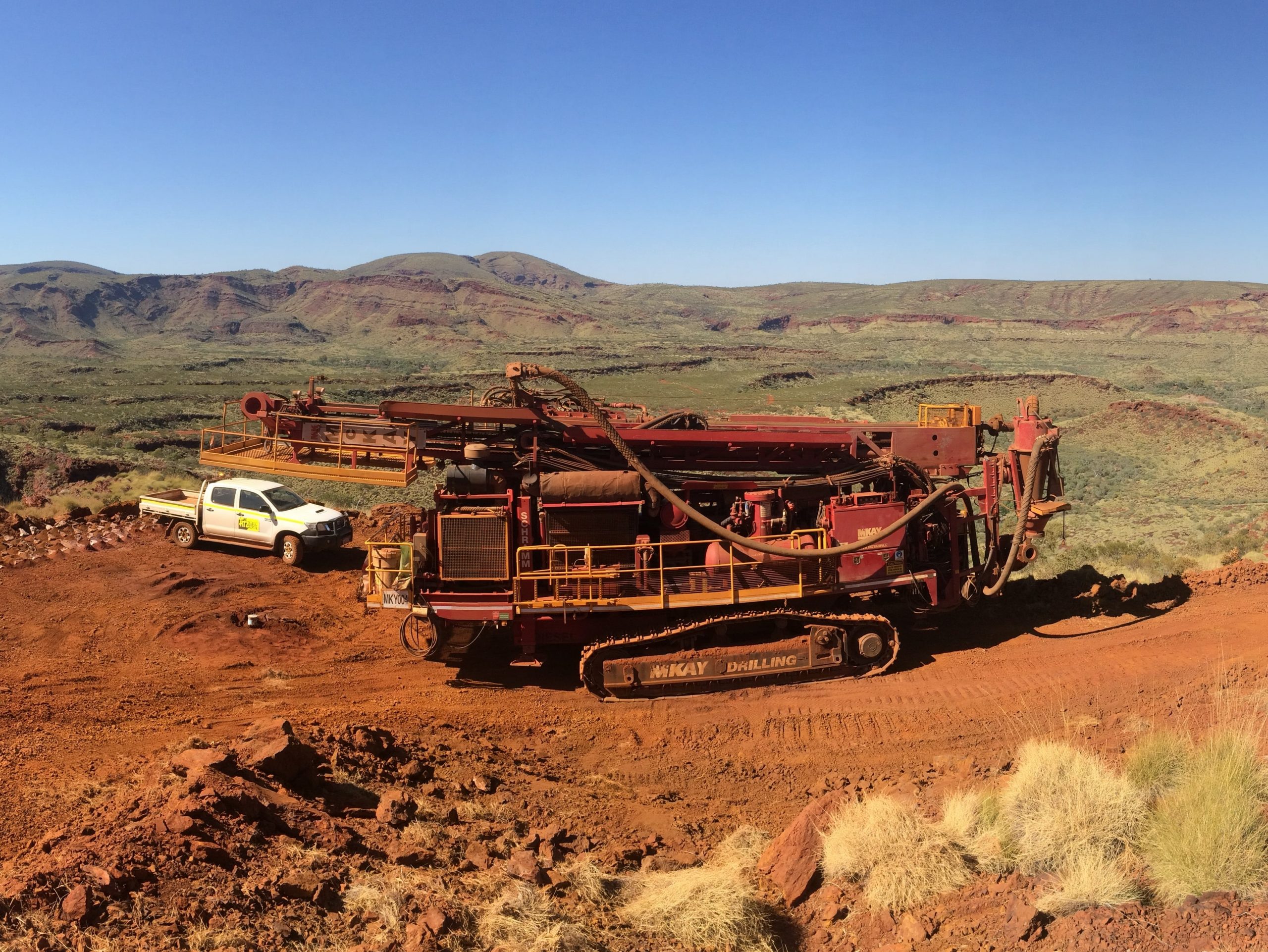

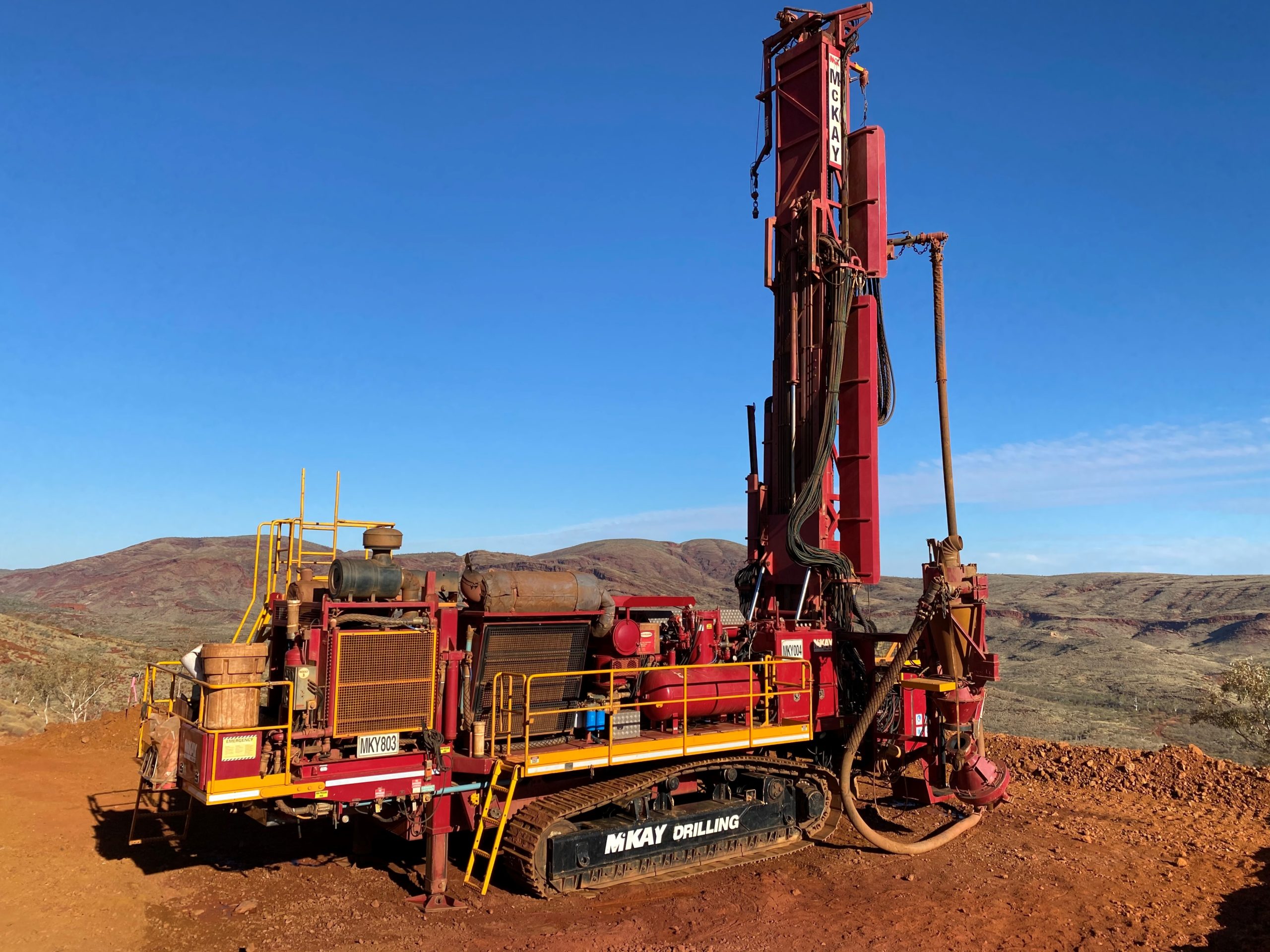

RIG 4

Carrier: 70 Ton V Tracks
Model: T685C Schramm
Year: 2010
Last Rebuild: 2018
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik KL DA 554
Depth Capacity: +700m 5.5″ RC

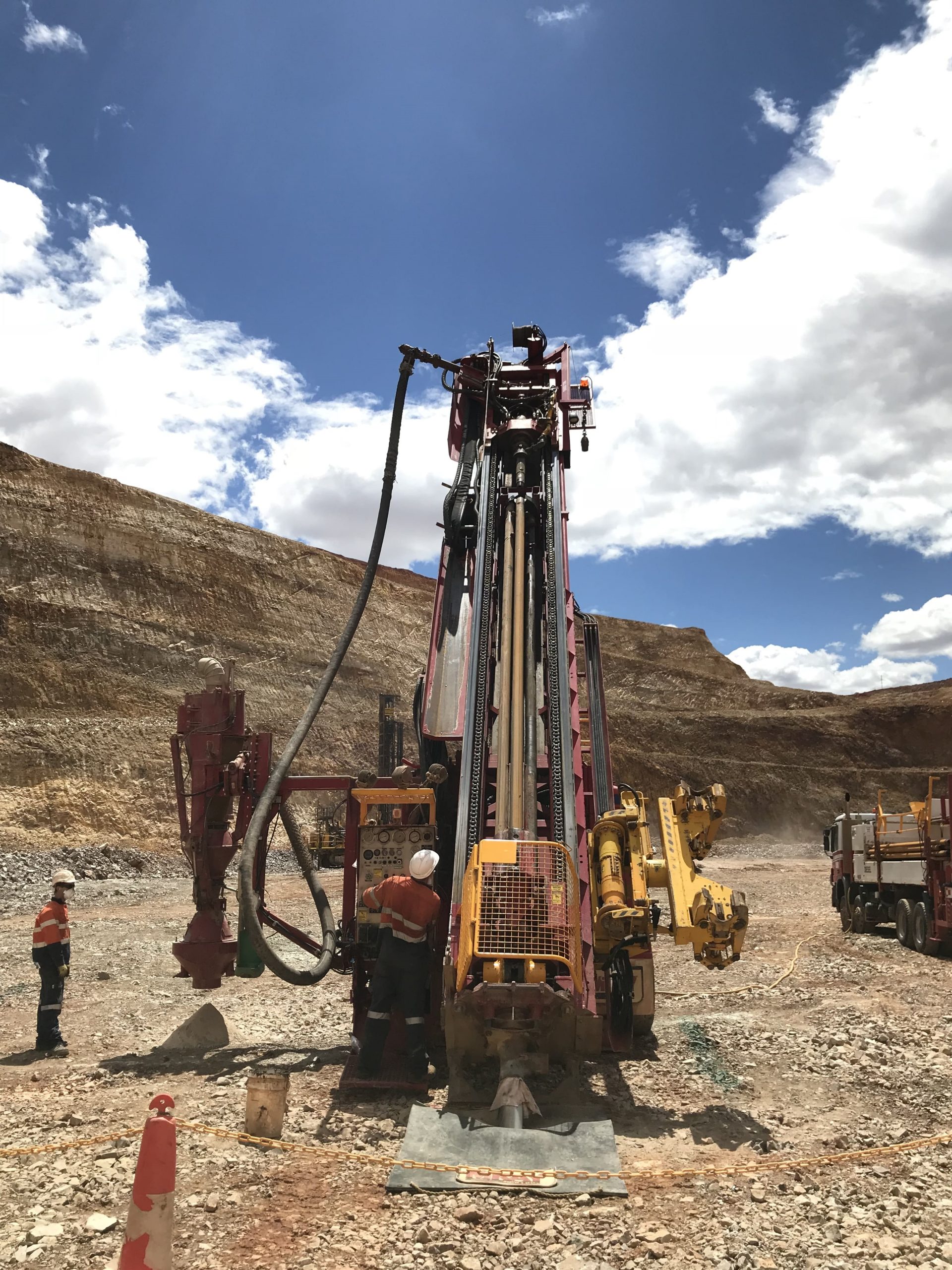

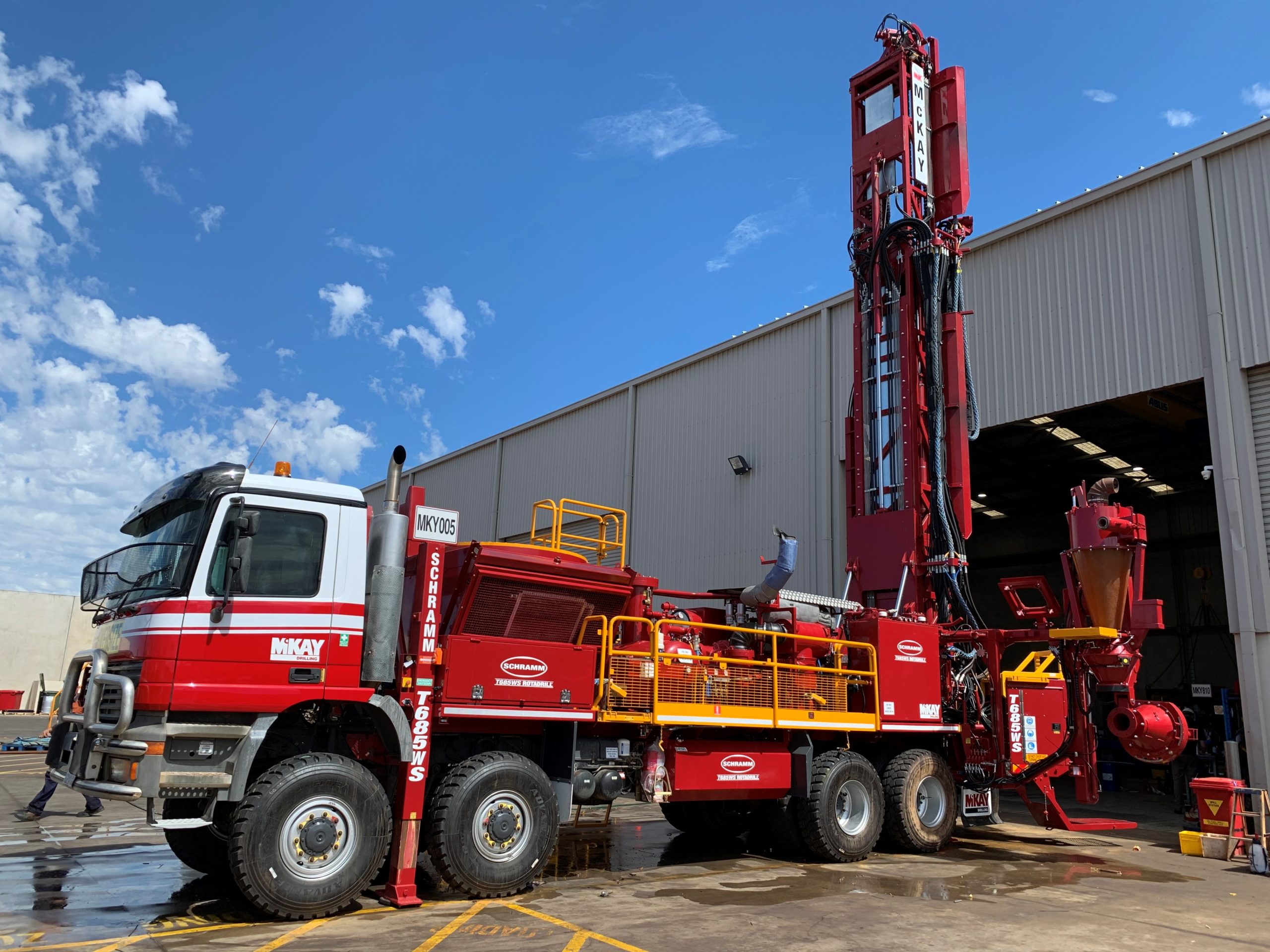

RIG 5

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2002
Last Rebuild: 2019
Power: 700HP @ 1800RPM
Capacity: 900/1150 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Foremost 1500
Depth Capacity: +700m 5.5″ RC

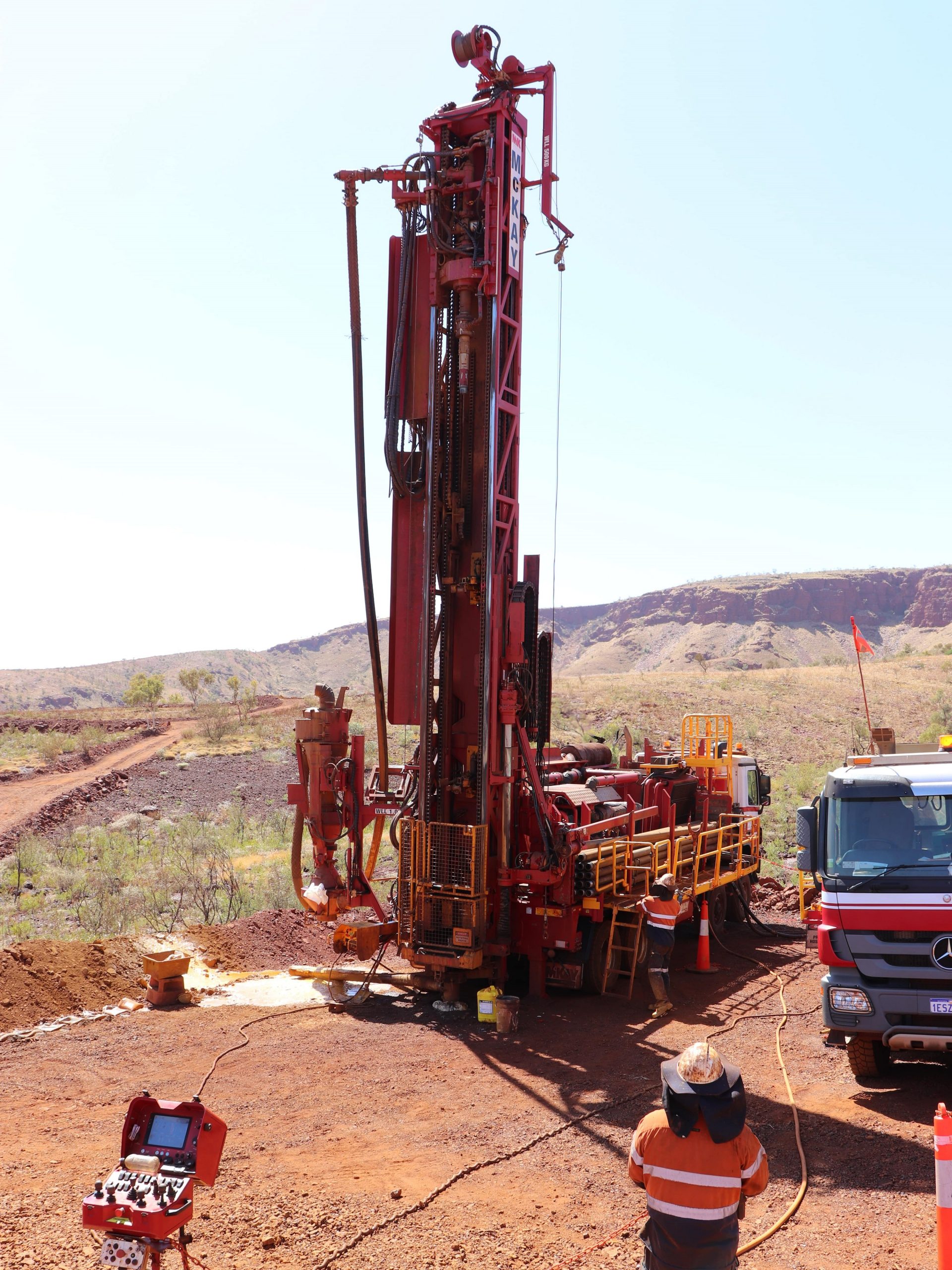

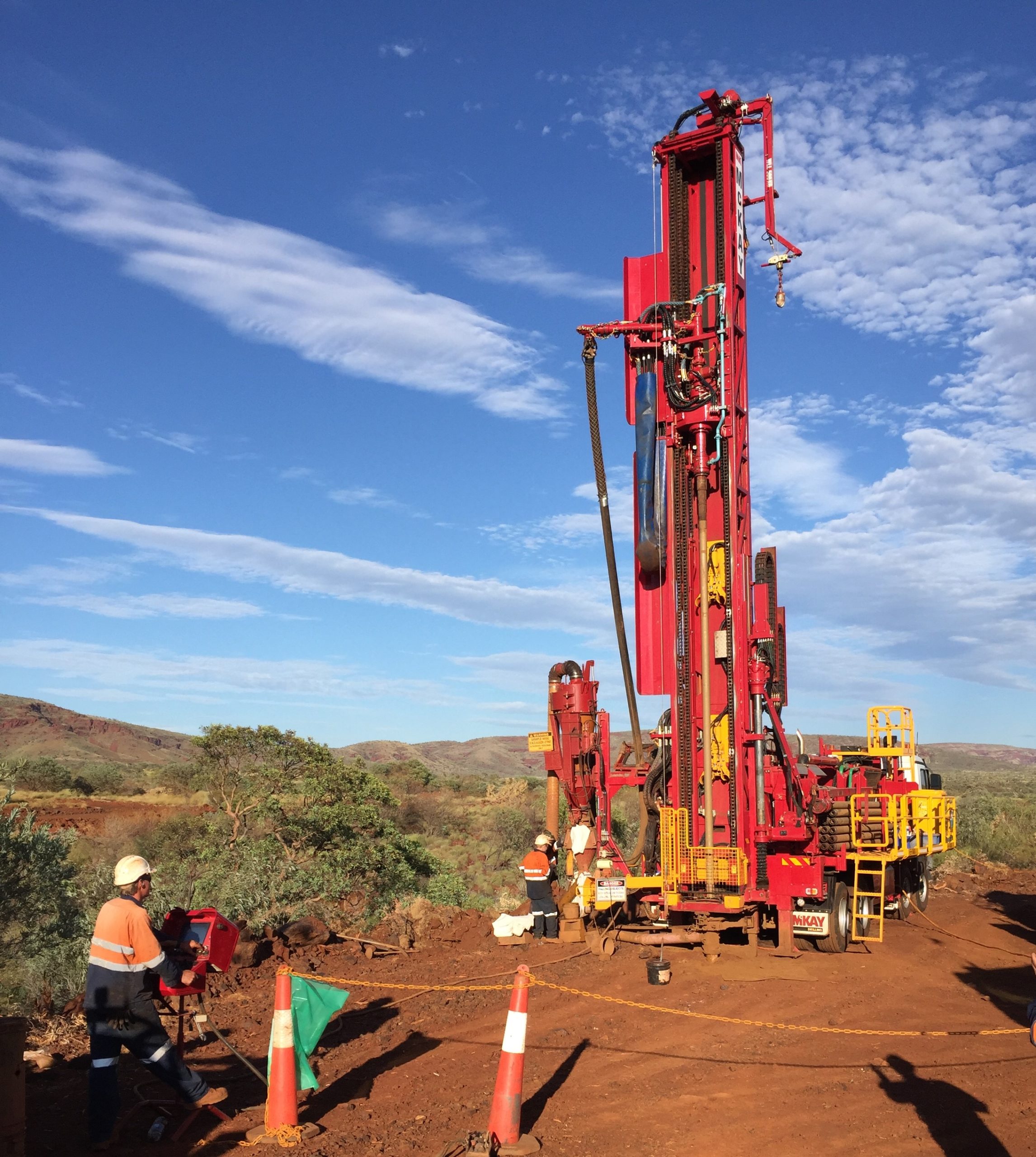

RIG 6

Carrier: 8×8 Mercedes
Model: T685i Schramm
Year: 2015
Last Rebuild: N/A
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

RIG 7

Carrier: 8×8 Mercedes Actross
Model: T685i Schramm
Year: 2021
Last Rebuild: N/A
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

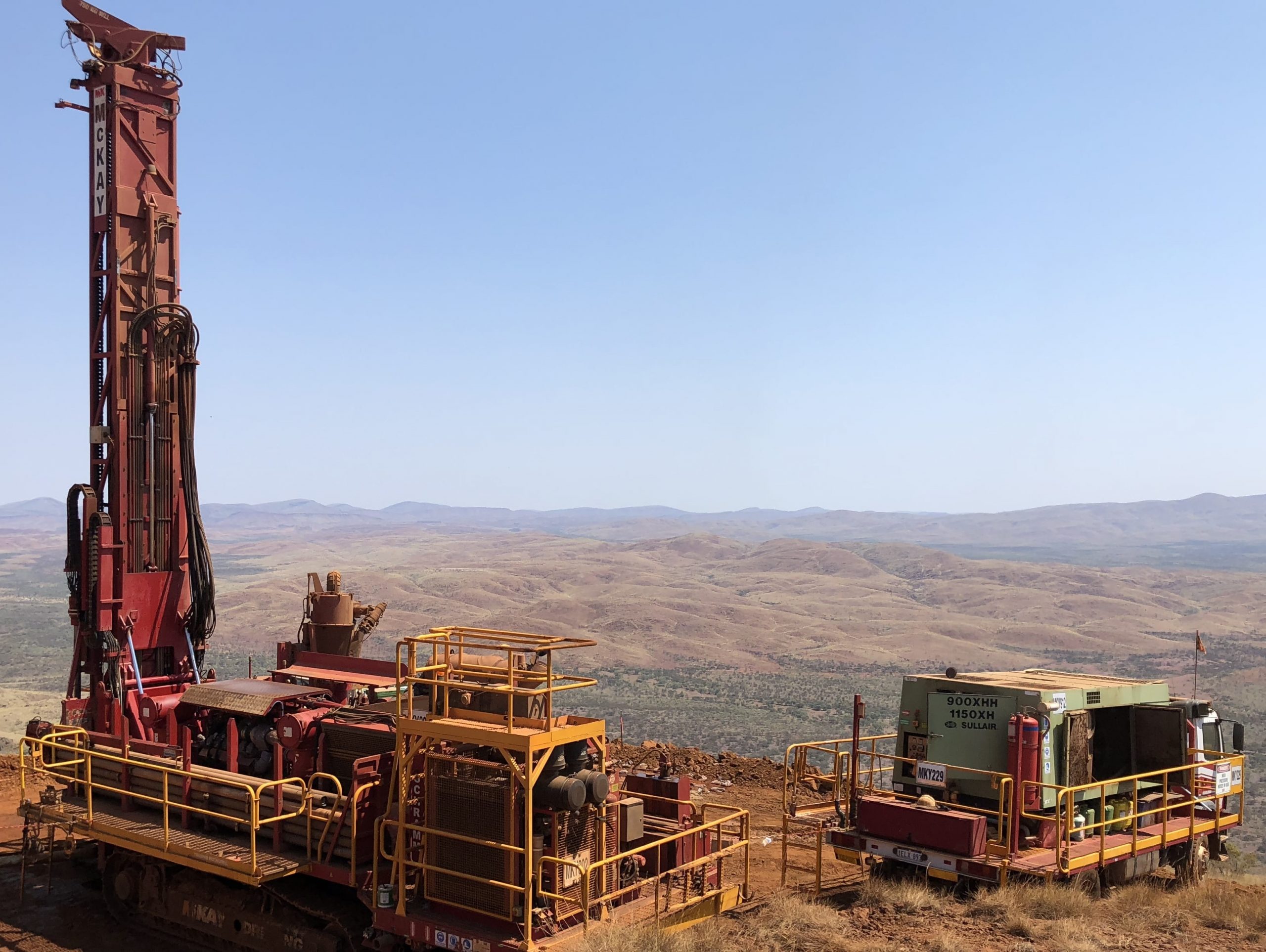

RIG 8

Carrier: 70 Ton V Tracks
Model: T685C Schramm
Year: 2013
Last Rebuild: 2017
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

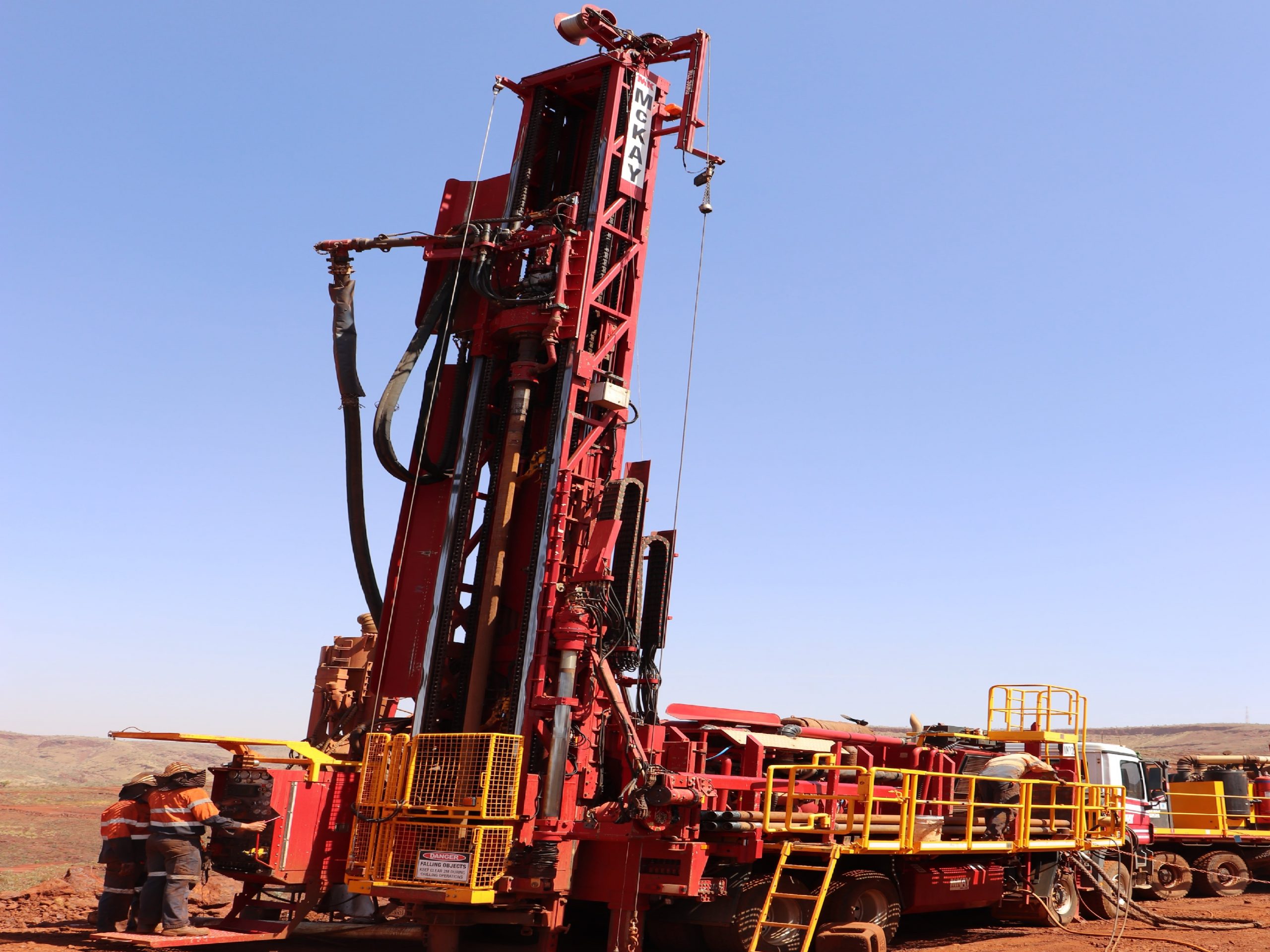

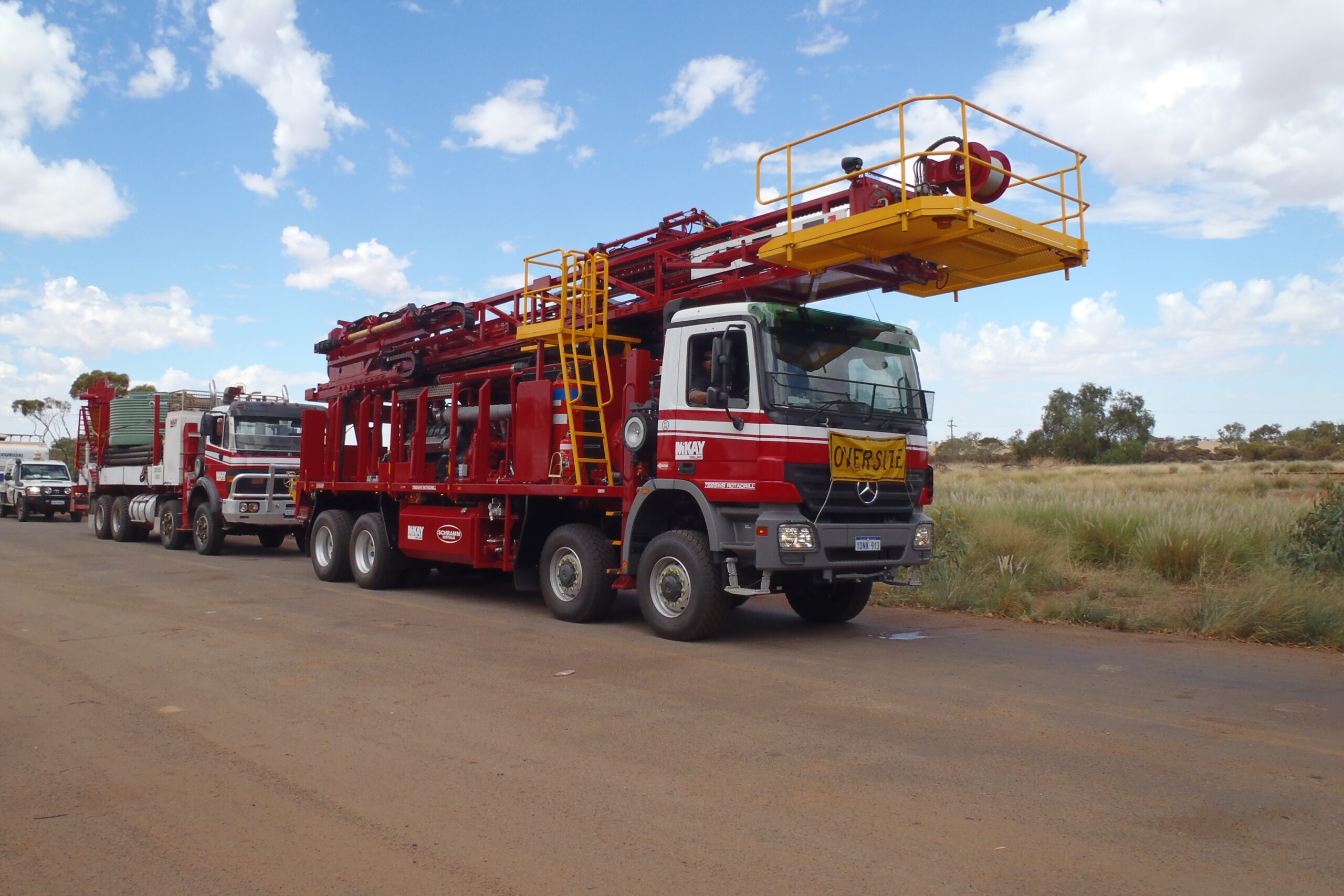

RIG 9

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2008
Last Rebuild: 2023
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

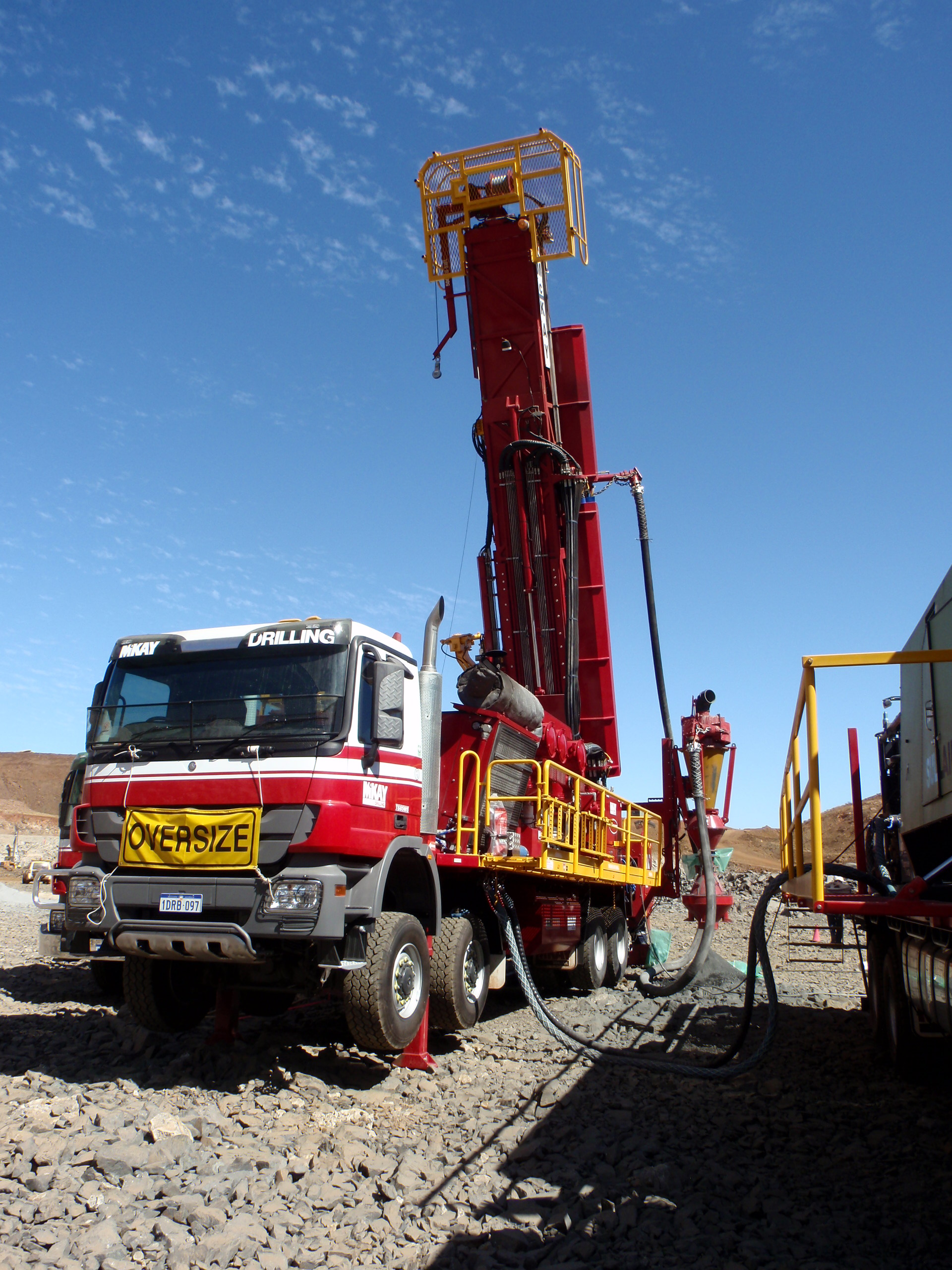

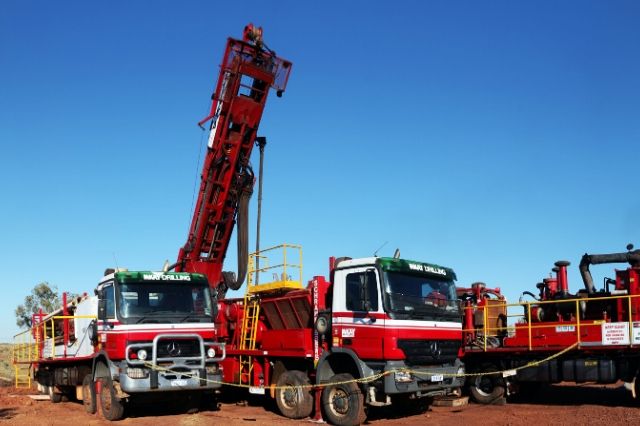

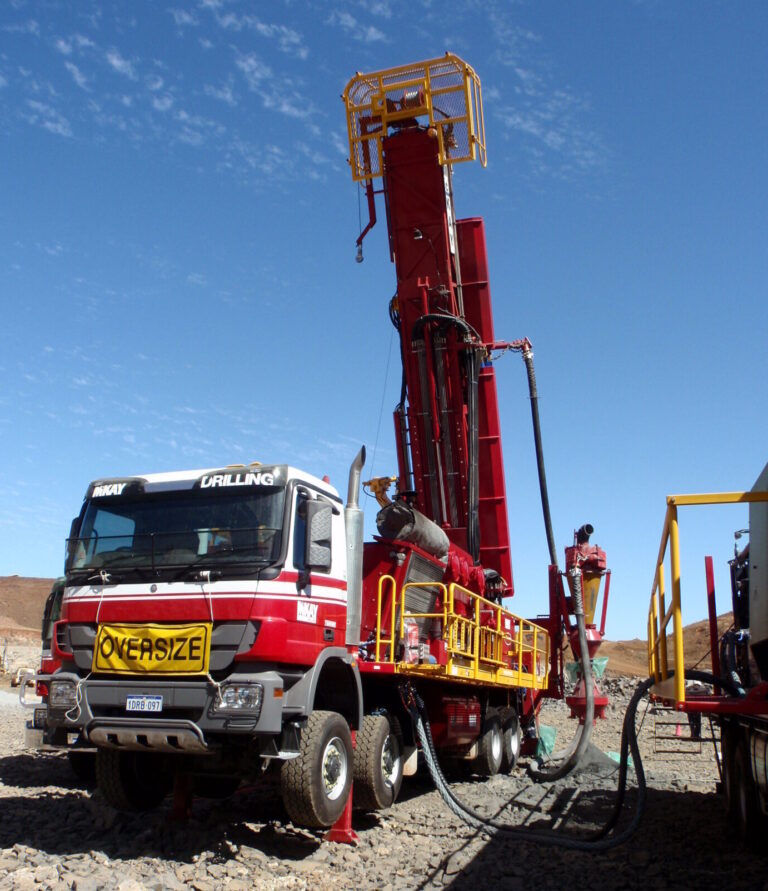

RIG 10

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2011
Last Rebuild: 2017
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Foremost 1500
Depth Capacity: +700m 5.5″ RC

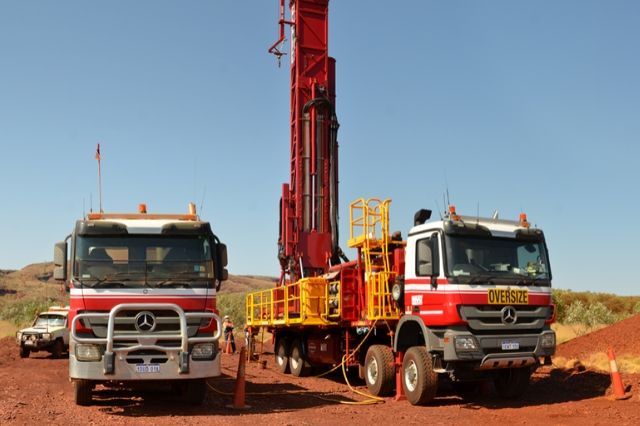

RIG 11

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2012
Last Rebuild: 2018
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

RIG 12

Carrier: 8×8 Mercedes
Model:T685WS Schramm
Year: 2012
Last Rebuild: 2018
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Foremost 1500
Depth Capacity: +700m 5.5″ RC

RIG 13

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2012
Last Rebuild: 2023
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

RIG 14

Carrier: 8×8 Tatra
Model: T685i Schramm
Year: 2024
Last Rebuild: N/A
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

RIG 15

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2015
Last Rebuild: N/A
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

RIG 18

Carrier: 8×8 Mercedes
Model: T685WS Schramm
Year: 2015
Last Rebuild: N/A
Power: 850HP @ 1800RPM
Capacity: 1150/1350 CFM @ 1800RPM
Pullup Capacity: 33,883KG
Pulldown Capcity: 18,280KG
Rod Handler: Sandvik DA554
Depth Capacity: +700m 5.5″ RC

RIG 21

Carrier: 8×8 MAN
Model: UDR1200
Year: 2008
Last Rebuild: 2021
Power: 195KW
Pullup Capacity: 23,000KG
Pulldown Capcity: 12,000KG
Rod Handler: KWL/Boart Longyear
Water Injection: FMC W1122BCD

RIG 22

Carrier: 8×8 Mercedes
Model: Boart Longyear LF350
Year: 2015
Last Rebuild: 2018
Power: 227KW
Pullup Capacity: 29,484KG
Pulldown Capcity: 13,154KG
Rod Handler: Tilt out
Water Injection: Bean L118SC 90HP

RIG 23

Carrier: 8×8 Mercedes
Model: Boart Longyear LF350
Year: 2016
Last Rebuild: N/A
Power: 227KW
Pullup Capacity: 29,484KG
Pulldown Capcity: 13,154KG
Rod Handler: Tilt out
Water Injection: Bean L118SC 90HP

RIG 24

Carrier: 8×8 Mercedes
Model: Boart Longyear LF350
Year: 2016
Last Rebuild: N/A
Power: 227KW
Pullup Capacity: 29,484KG
Pulldown Capcity: 13,154KG
Rod Handler: Tilt out
Water Injection: Bean L118SC 90HP

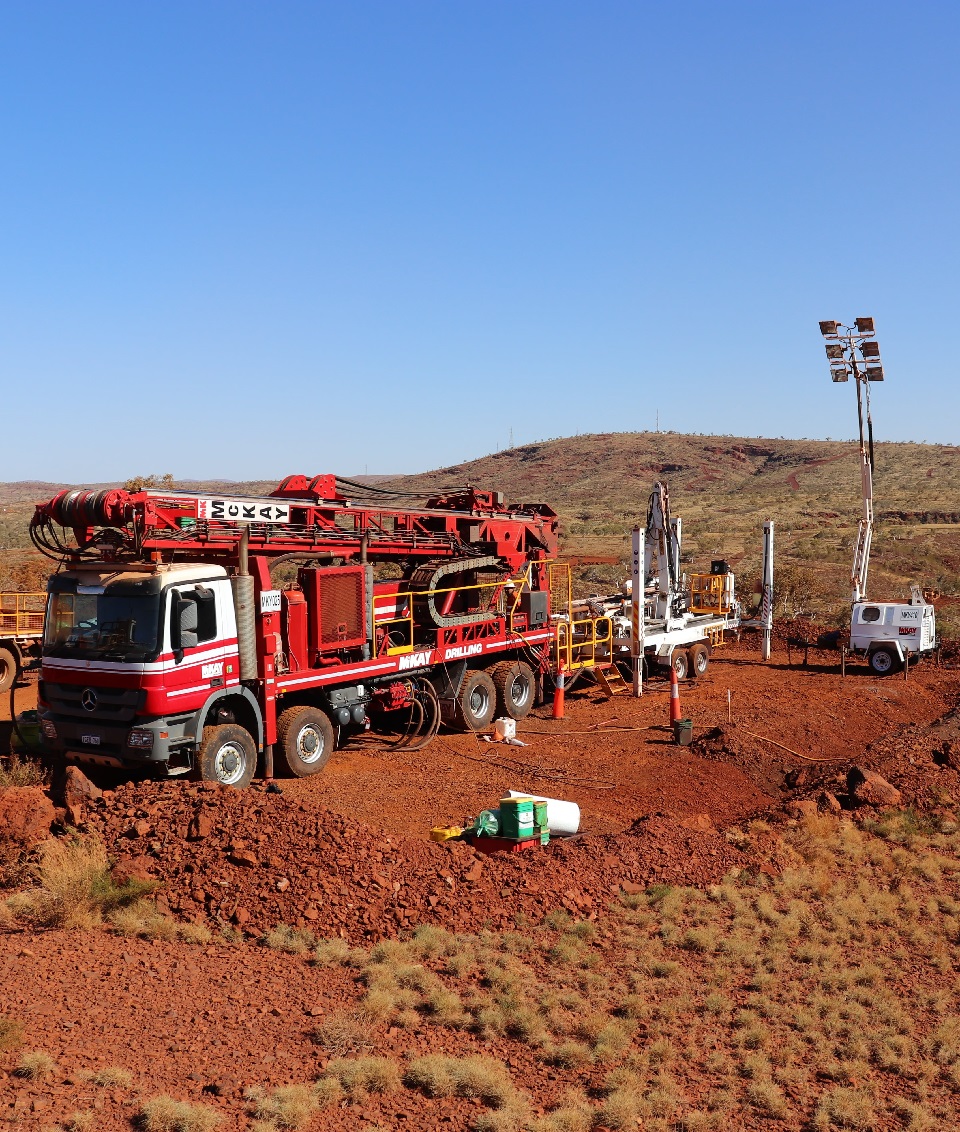

RIG 25

Carrier: 8×8 Mercedes
Model: Boart Longyear LF350
Year: 2017
Last Rebuild: N/A
Power: 227KW
Pullup Capacity: 29,484KG
Pulldown Capcity: 13,154KG
Rod Handler: Tilt out
Water Injection: Bean L118SC 90HP

RIG 26

Carrier:
Model:
Year:
Last Rebuild: N/A
Power:
Pullup Capacity:
Pulldown Capcity:
Rod Handler:
Water Injection:

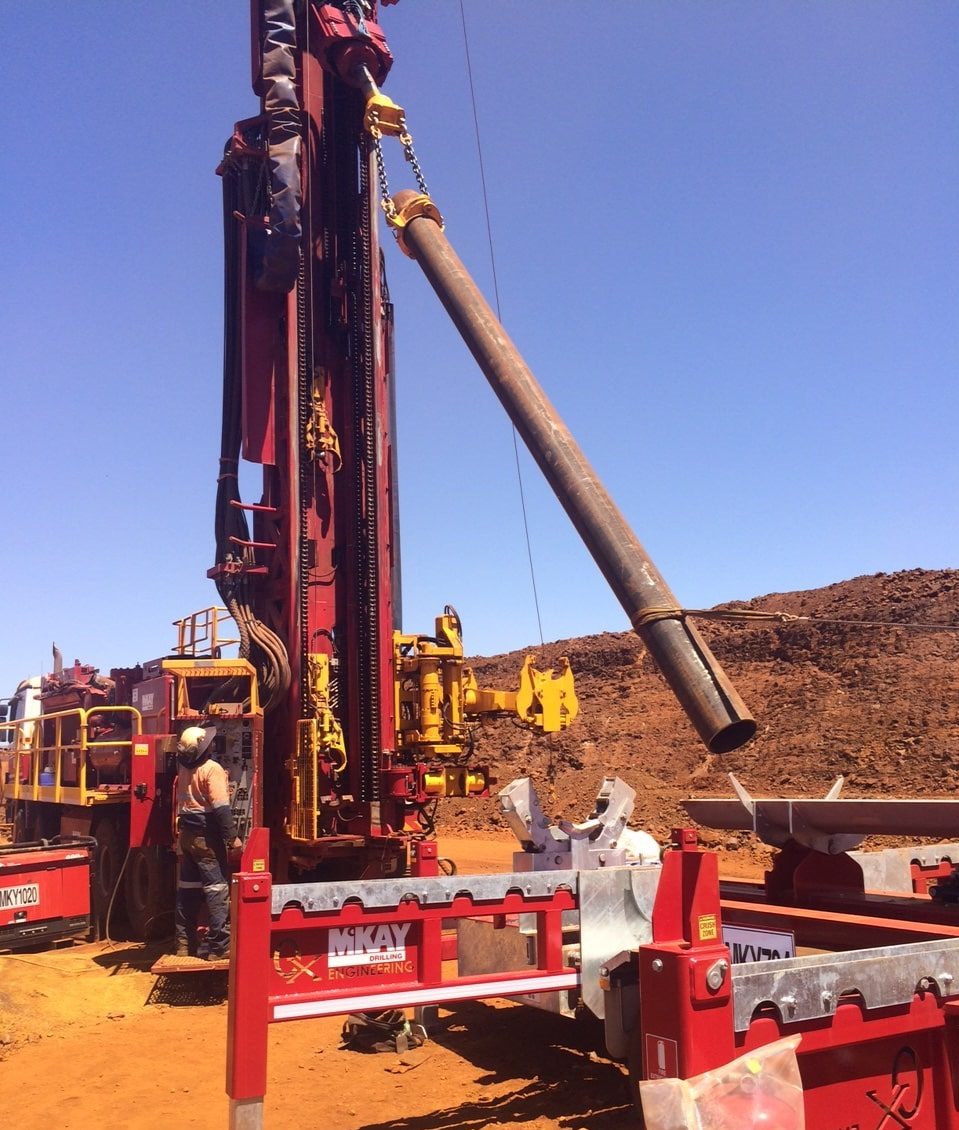

RIG 31

Carrier: 8×8 Mercedes
Model: T685 WS-D Schramm
Year: 2004
Last Rebuild: 2022
Pullup Capacity: 50,000KG
Pulldown Capcity: 25,000KG
Rod Handler: Foremost 1500
Depth Capacity: +700m 5.5″ RC
